The easy to handle shoring construction kit for truss girders, shoring towers and pedestrian bridges

ALPHAKIT

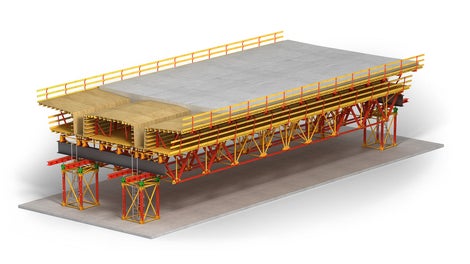

The intuitive shoring construction kit for truss girders, shoring towers and pedestrian bridges

ALPHAKIT is a new construction kit from PERI, offering a cost-effective alternative to the VARIOKIT engineering solution. The highly versatile system is based on PERI's principles of fewer parts, intuitive assembly and lightweight, to help our customers keep on time and budget whilst operating safely.

The system can be used for shoring solutions up to 30m in height and bridging spans of 27.75m. The system can be assembled and dismantled extremely quickly due to the simple fitting pin connections, with work taking place either vertically or horizontally and transported safely by crane or on a trolley with winch unit.

Easy pre-assembly without a crane

Easy to handle, lightweight individual components
Fast and safe assembly

Due to high load-bearing connections with a maximum of 2 Fitting Pins and Cotter Pins per connection
Few core components

And a wide range of possible applications make the system simple and cost-efficient.

ALPHAKIT in action

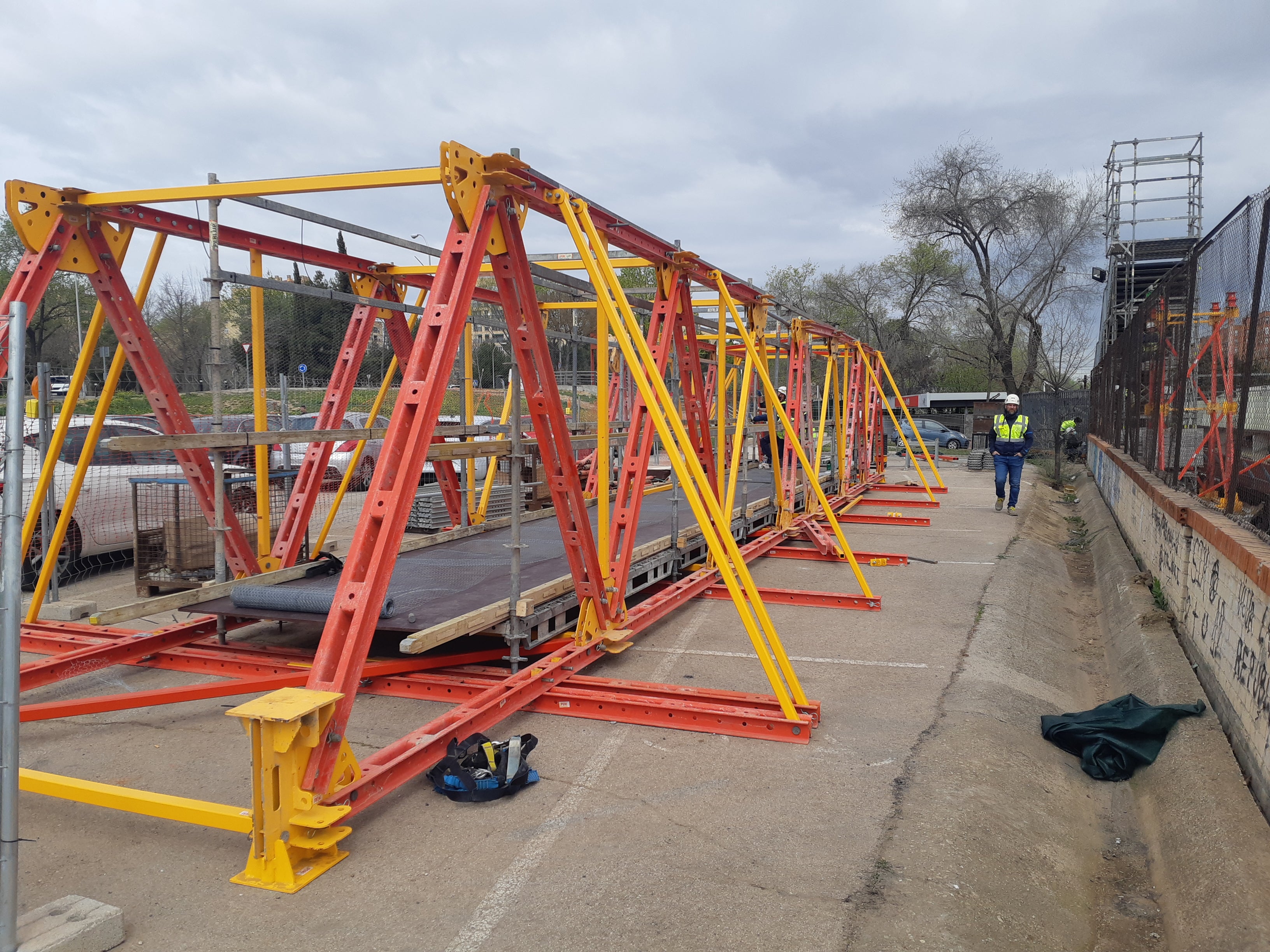

The lightweight steel components ensure no crane is required for pre-assembling the towers and girder packages. Ergonomic individual components ensure assembly can be completely carried out without any lifting gear.

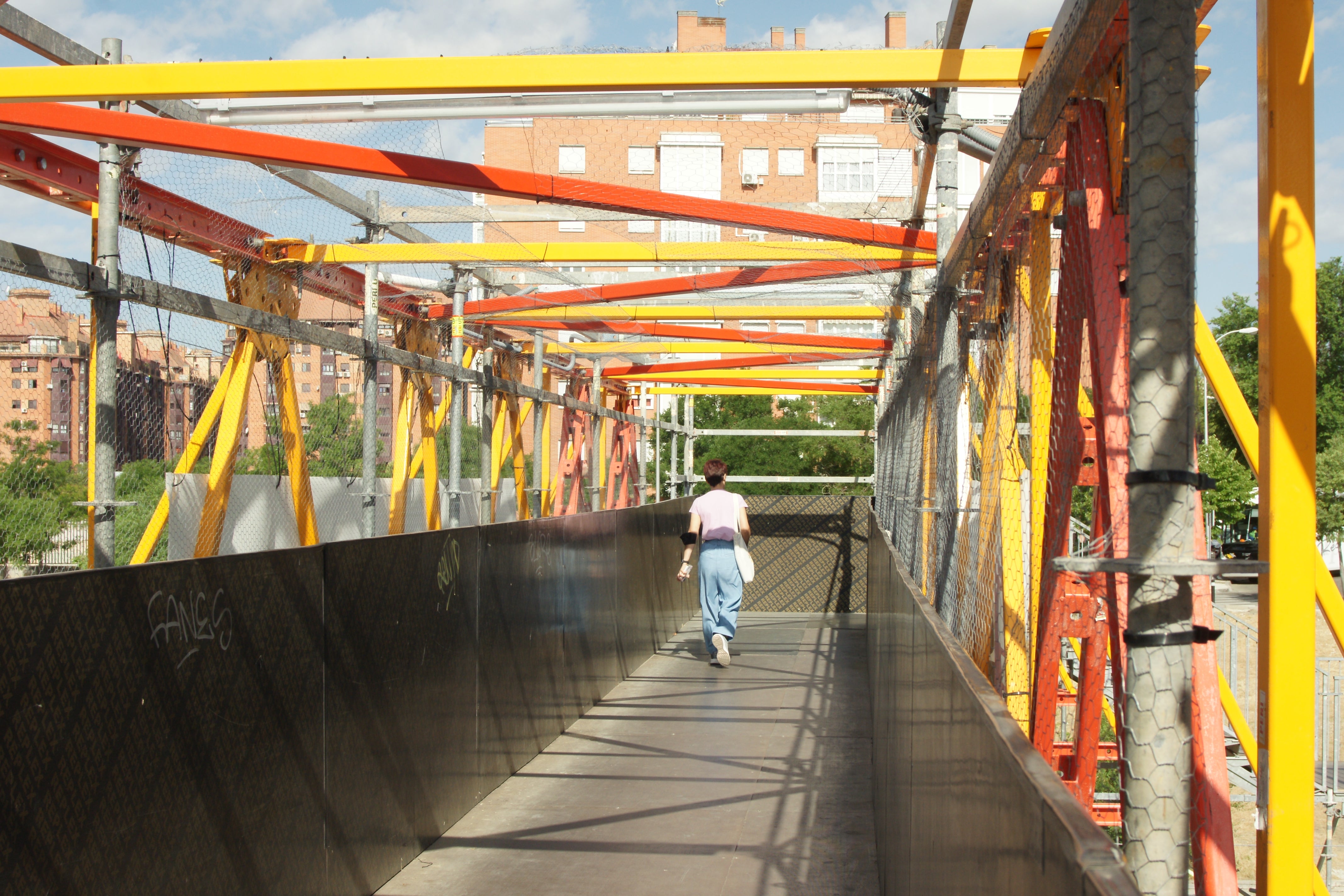

ALPHAKIT can serve as a temporary pedestrian bridge for safe access over and around live construction sites and temporarily closed access routes.
The variable range of applications make the system simple and cost-efficient. The same components can be used over and over for multiple applications on different projects.

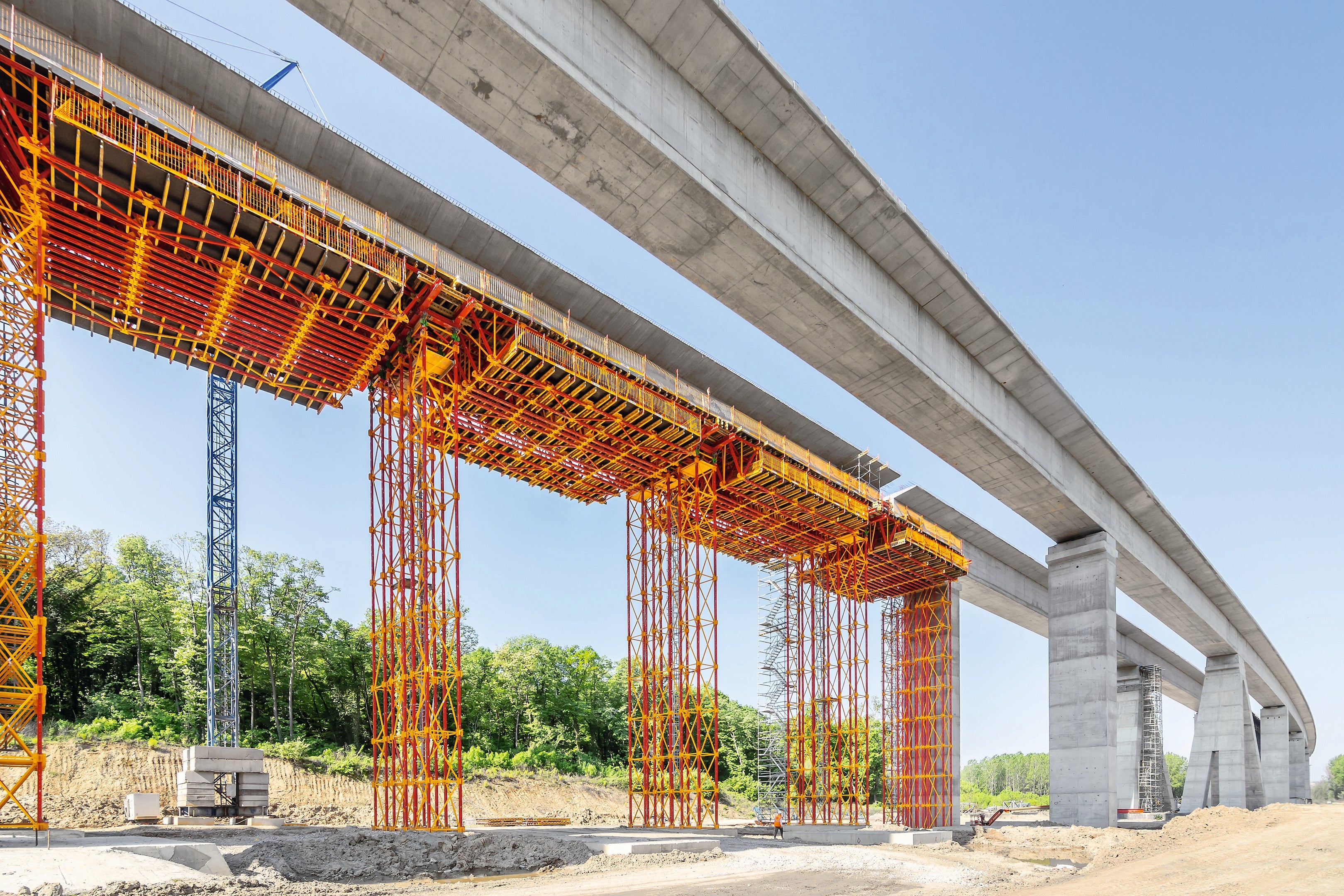

The ALPHAKIT Truss Girder transfers loads from in-situ concrete or prefabricated components in bridge and building construction.
